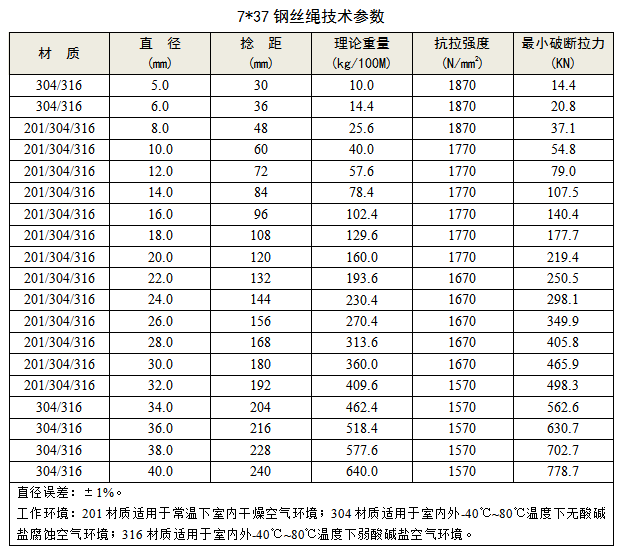

7*37不锈钢丝绳技术参数 GBT9944-2002
|
材 质 |
直 径 (mm) |
捻 距 (mm) |
理论重量 (kg/100M) |
抗拉强度 (N/mm2) |
最小破断拉力 (KN) |
|
|
304/316 |
5.0 |
30 |
10.0 |
1870 |
14.4 |
|
|
304/316 |
6.0 |
36 |
14.4 |
1870 |
20.8 |
|
|
201/304/316 |
8.0 |
48 |
25.6 |
1870 |
37.1 |
|
|
201/304/316 |
10.0 |
60 |
40.0 |
1770 |
54.8 |
|
|
201/304/316 |
12.0 |
72 |
57.6 |
1770 |
79.0 |
|
|
201/304/316 |
14.0 |
84 |
78.4 |
1770 |
107.5 |
|
|
201/304/316 |
16.0 |
96 |
102.4 |
1770 |
140.4 |
|
|
201/304/316 |
18.0 |
108 |
129.6 |
1770 |
177.7 |
|
|
201/304/316 |
20.0 |
120 |
160.0 |
1770 |
219.4 |
|
|
201/304/316 |
22.0 |
132 |
193.6 |
1670 |
250.5 |
|
|
201/304/316 |
24.0 |
144 |
230.4 |
1670 |
298.1 |
|
|
201/304/316 |
26.0 |
156 |
270.4 |
1670 |
349.9 |
|
|
201/304/316 |
28.0 |
168 |
313.6 |
1670 |
405.8 |
|
|
201/304/316 |
30.0 |
180 |
360.0 |
1670 |
465.9 |
|
|
201/304/316 |
32.0 |
192 |
409.6 |
1570 |
498.3 |
|
|
304/316 |
34.0 |
204 |
462.4 |
1570 |
562.6 |
|
|
304/316 |
36.0 |
216 |
518.4 |
1570 |
630.7 |
|
|
304/316 |
38.0 |
228 |
577.6 |
1570 |
702.7 |
|
|
304/316 |
40.0 |
240 |
640.0 |
1570 |
778.7 |
|
|
直径误差：±1%。 工作环境：201材质适用于常温下室内干燥空气环境；304材质适用于室内外-40℃~80℃温度下无酸碱盐腐蚀空气环境；316材质适用于室内外-40℃~80℃温度下弱酸碱盐空气环境。 |
||||||
