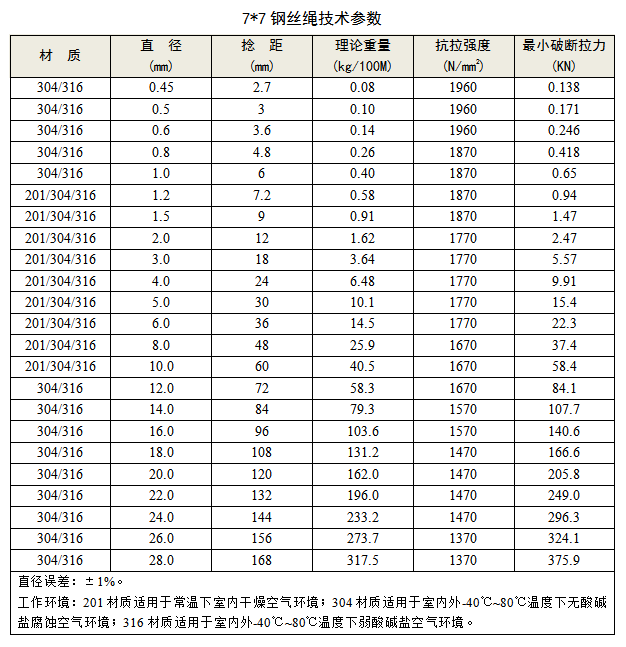

7*7不锈钢丝绳技术参数 GBT9944-2002
|
材 质 |
直 径 (mm) |
捻 距 (mm) |
理论重量 (kg/100M) |
抗拉强度 (N/mm2) |
最小破断拉力 (KN) |
|
|
304/316 |
0.45 |
2.7 |
0.08 |
1960 |
0.138 |
|
|
304/316 |
0.5 |
3 |
0.10 |
1960 |
0.171 |
|
|
304/316 |
0.6 |
3.6 |
0.14 |
1960 |
0.246 |
|
|
304/316 |
0.8 |
4.8 |
0.26 |
1870 |
0.418 |
|
|
304/316 |
1.0 |
6 |
0.40 |
1870 |
0.65 |
|
|
201/304/316 |
1.2 |
7.2 |
0.58 |
1870 |
0.94 |
|
|
201/304/316 |
1.5 |
9 |
0.91 |
1870 |
1.47 |
|
|
201/304/316 |
2.0 |
12 |
1.62 |
1770 |
2.47 |
|
|
201/304/316 |
3.0 |
18 |
3.64 |
1770 |
5.57 |
|
|
201/304/316 |
4.0 |
24 |
6.48 |
1770 |
9.91 |
|
|
201/304/316 |
5.0 |
30 |
10.1 |
1770 |
15.4 |
|
|
201/304/316 |
6.0 |
36 |
14.5 |
1770 |
22.3 |
|
|
201/304/316 |
8.0 |
48 |
25.9 |
1670 |
37.4 |
|
|
201/304/316 |
10.0 |
60 |
40.5 |
1670 |
58.4 |
|
|
304/316 |
12.0 |
72 |
58.3 |
1670 |
84.1 |
|
|
304/316 |
14.0 |
84 |
79.3 |
1570 |
107.7 |
|
|
304/316 |
16.0 |
96 |
103.6 |
1570 |
140.6 |
|
|
304/316 |
18.0 |
108 |
131.2 |
1470 |
166.6 |
|
|
304/316 |
20.0 |
120 |
162.0 |
1470 |
205.8 |
|
|
304/316 |
22.0 |
132 |
196.0 |
1470 |
249.0 |
|
|
304/316 |
24.0 |
144 |
233.2 |
1470 |
296.3 |
|
|
304/316 |
26.0 |
156 |
273.7 |
1370 |
324.1 |
|
|
304/316 |
28.0 |
168 |
317.5 |
1370 |
375.9 |
|
|
直径误差：±1%。 工作环境：201材质适用于常温下室内干燥空气环境；304材质适用于室内外-40℃~80℃温度下无酸碱盐腐蚀空气环境；316材质适用于室内外-40℃~80℃温度下弱酸碱盐空气环境。 |
||||||
